Pulleys & Other Tools

---

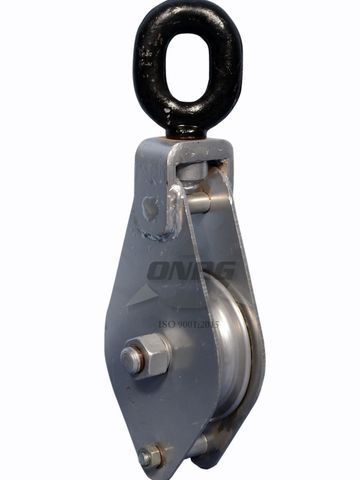

•Hot roller MS Split Pulley ,lighter & Stronger than CI Pulley.

•Pulley coated with Black Powder to reduce corrosion.

•Centre Pin material is EN-8 of 25mm Dia.

•The Oval hook specification is IS8610.

•Safe Working Limit-8 tons,Breaking-16 Tons.

•Total Weight-7.1Kg Approx.

•MS Steel body and frame

•Bearing Used: 6305-ZZ

•Center Pin : EN8

•22mm Eye Bolt

•Suitable for Rope 10mm to 24mm

•tested Load 5.0MT and safe working load 3.0MT

•MS Steel body and frame

•Shank Hook type confirming to IS8610 pattern 25

•Center Pin : EN8

•Double wheel with groove diaSuitable for

•Rope 10mm to 24mm

•Tested Load 6.5MT and safe working load 5.0MT

•MS Steel body and frame

•Swivel Type Eye Hook

•Bearing Used: 6305-ZZ

•Center Pin : EN8

•tested Load 13MT and safe working load 10.0MT

•MS Steel pulley with Single bearing in each wheel

•Bearing used 6305zz

•Number of bearing used 6

•Center Pin: EN-8 dia25mm

•Hook: 28mm Oval Hook

•Equalizer Pulley 10 Tons.

•The Frame Constructed of Steel.

•Pulley is made of cast iron on nickel plated MS Bush.

•The Eye specification is IS8610.

•WLL-10Tons and Test Load-13tons.

Frame made of Steel ,Forged Swivel Hook as per 8610 ,Pulleys Mounted on Seal Double Ball Bearings available as Single Pulley, Double Pulley ,Triple Pulley ,Four Sheave Pulley, Six Sheave pulley.

Used for inspection of conductors after constructiion. Has a foot operated brake and is made for either twin or quad conductors. Made out of mild steel sections and has nulon rollers.

 Designed for winding/pay-out of earth wire or conductor when the drum is damaged or manual stringing is required in difficult terrain. Fabricated from mild steel sections with its shaft on tapered roller bearings in a cast iron shield. Foot-operated brake lever is also provided to stop rotation.

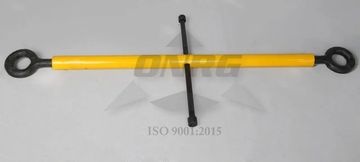

•Capacity 5Ton, 10Ton

•MS Steel body Cylinder

•MS Eye Bolt at both end

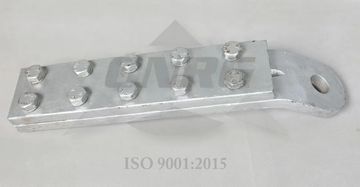

•6 Bolts PattaClamp & 10 Bolt PattaClamp

•Material – MS

•Paint - Silver

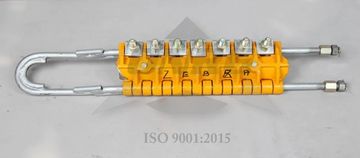

3 Bolt & 7 Bolt Clamps

Capacity- 3Ton, 5Ton, 10Ton, 20Tons Cap.

•Swivel Joint body made of MS Cold drown bright bar •Dual bearing in side - one thrust and one ball bearing •MS Bobbin and MS Bobbin Pin

Both end open type socks

Head-type temporary socks

•Brand-V-Tal

•SM Model

•Overload Protection

•Portable & Lightweight

•Telescopic Handle allows the operator to optimize pull and stroke.

•Long service life.

•Brand-V-Tal

•Locked Chain release mechanism

•Knobbed hook

•Automatic switching to free pulley mode.

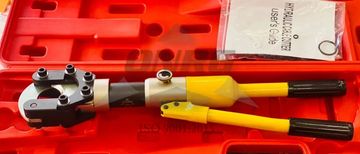

The cutter is suitable for cutting ACSR conductors up to 40 mm diameter.

Model- CPC-40BL

Weight- 8KG

Cutting Capacity- <ACSR720

Capacity: 10 Ton

•Two MS Plate of 12 mm Thickness

•Four Nos. 1” Nut BSW thread

•Eight Nos. Washers as per drawing

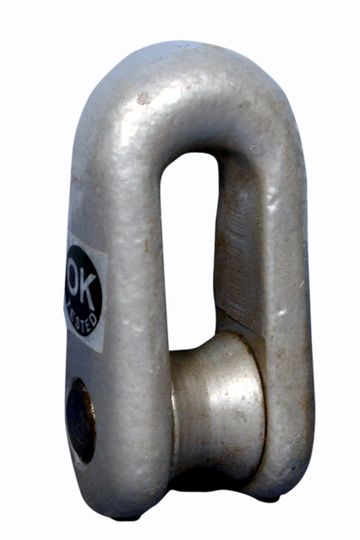

•Hot forged MS Body.

•Coated with Powder for reduce corrosion.

•Centre Pin material is MS of 25 mm Dia.

•Working Load limit 5 Tons

Swivel Joint Made Of High Tensile Steel Mounted On Thrust Bearings.ThePulling Rope To The Sock Joint Mounted On The Conductor In Order To Avoid Twist Acccumulating Availale In 3t , 5t 10t , 20t,30t Capacity

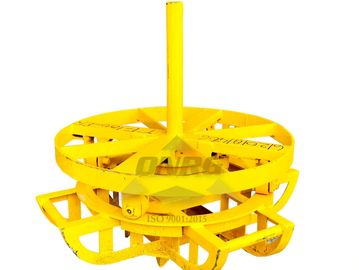

•All Steel Construction

•Easy to assemble

•Disc Braking System

•Capacity 7 Tons

•Can be use with all type of conductor Drum

•Normal Pull force on conductor
